Ohm's Law - Current in an electrical circuit varies directly as the applied voltage and inversely as the resistance. Georg Simon Ohm (1787-1854)

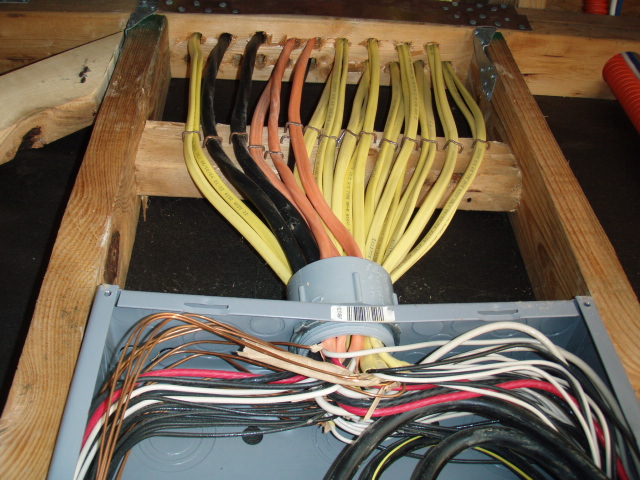

National Electrical Code - INSTALLATION VIOLATION - For over fifty seven (57) years!

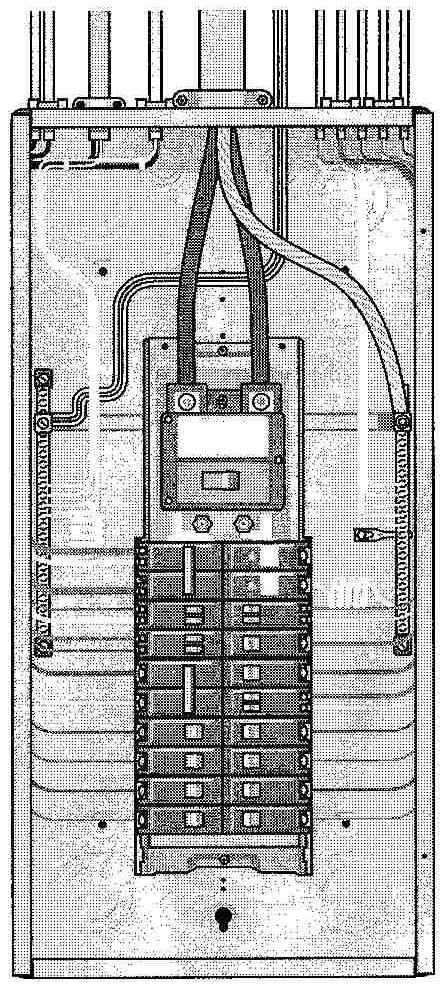

Proper cable connections to panelboard.

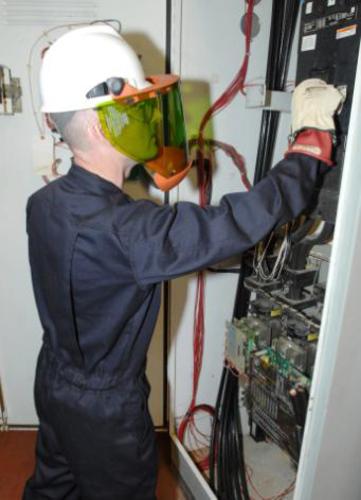

ALWAYS WEAR YOU Personal Protective Equipment (PPE)

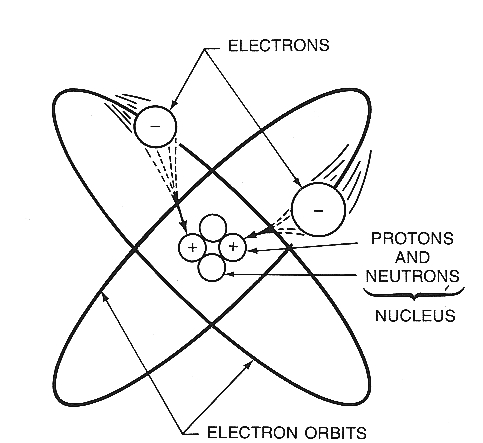

What is electricity?
The flow of electrons.

Galvanize Ground Rod - 5/8"
Residential: 45 Ohms Resistance

Copper Clad Ground Rod - 1/2"
Power Comany Pole: 90 Ohms Resistance

Just because you drive an eight-foot "GROUND ROD" does not mean you have a good ground. The 25 Ohms the Code makes reference to is NOT a very good ground.

120 VOLTS (divided by) 25 OHMS =
4.8 AMPS
THINK ABOUT IT!

"Well" He told them, "I can make it work."

OLD ELECTRICIAN

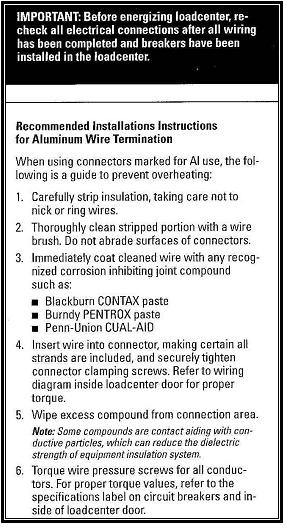

Aluminum Terminations

This fellow could cause switch gear to blow up in YOUR Face!





I WILL ADD PICTURES AND MORE INFORMATION AS IT BECOMES AVAILABLE.
